Endurance Frames
Used endurance frames are designed for long-distance comfort without sacrificing too much speed, using higher stack heights, shorter reach, slacker head angles and longer wheelbases to create a more upright, stable riding position. Most clear 32mm+ tyres and many add compliance features. These are the frames for sportives, audax, century rides, and anyone who rides more than 3-4 hours regularly.
What makes endurance geometry more comfortable?
Endurance geometry raises the handlebars relative to the saddle — typically 15-25mm more stack than a race frame in the same size. This reduces lower back, neck and wrist strain over long rides. Shorter reach brings the bars closer, reducing the stretched-out feeling of race geometry. Head tube angles around 72-72.5° give more stable, predictable handling, and longer chainstays (415-425mm against 405mm on race frames) improve stability when loaded and smooth out rough surfaces. The trade-off is a slightly less aggressive, less aerodynamic position than an aero frame — worth it for anyone prioritising comfort over competition.
Are compliance systems worth buying into?

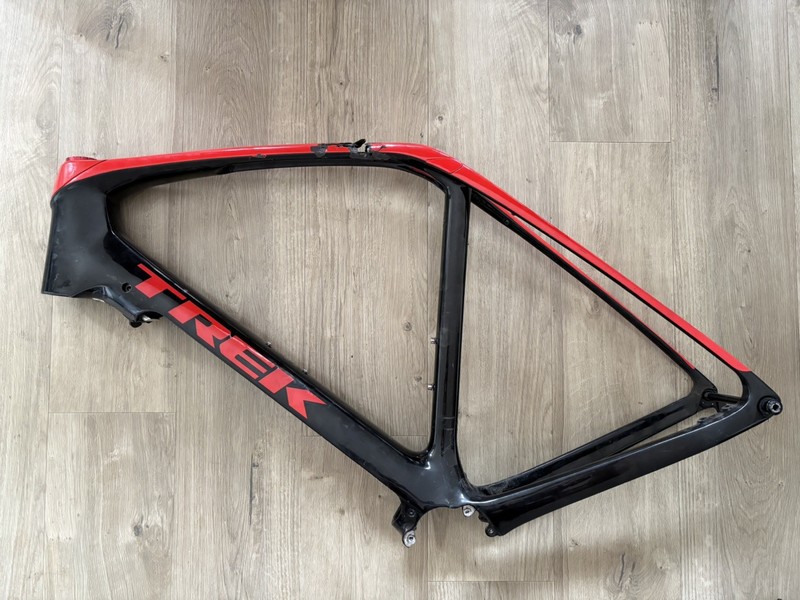

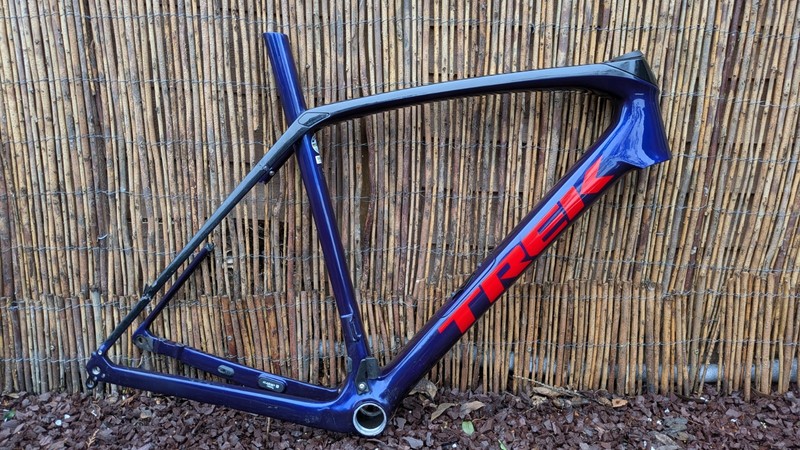

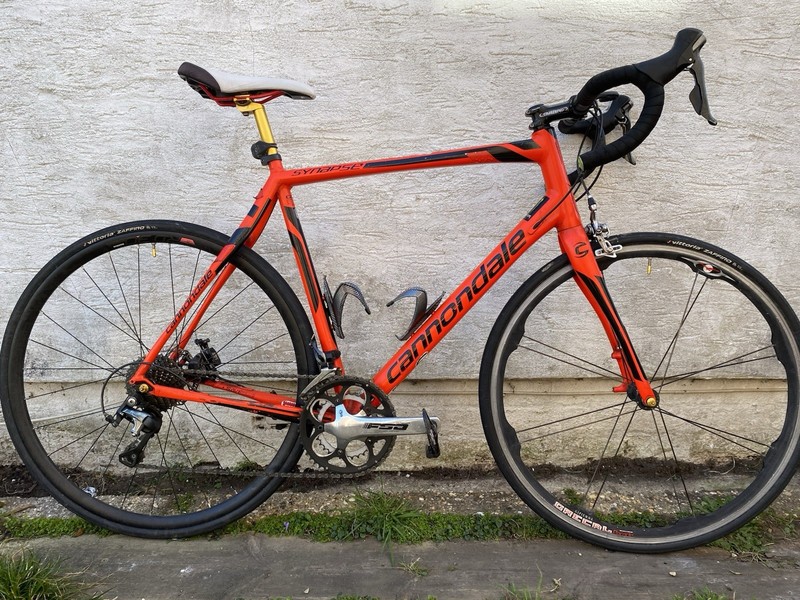

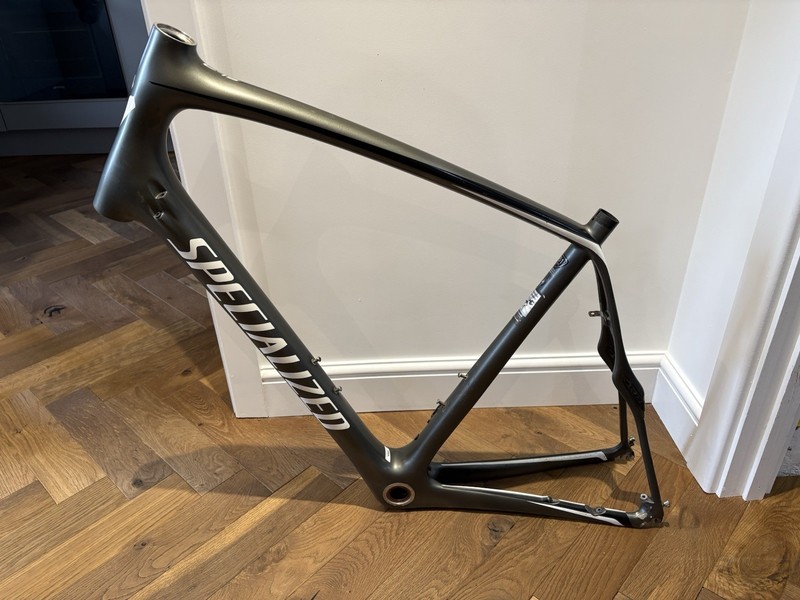

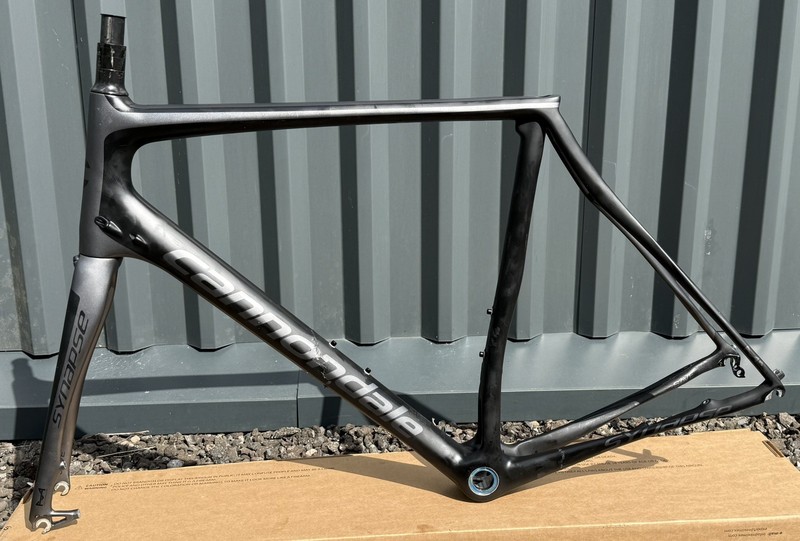

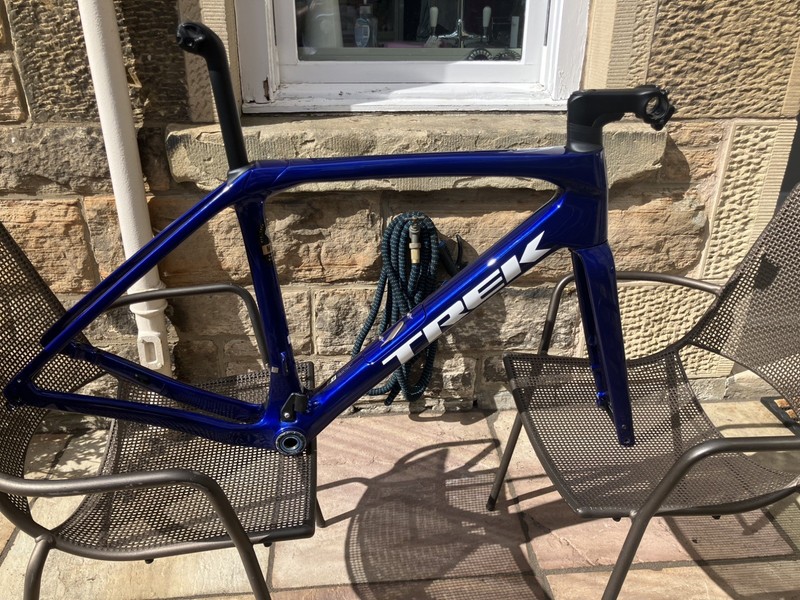

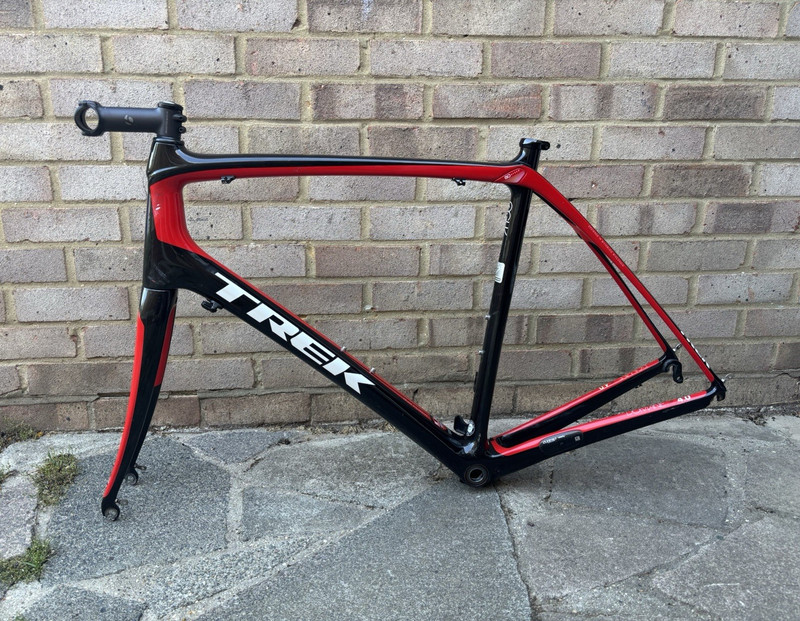

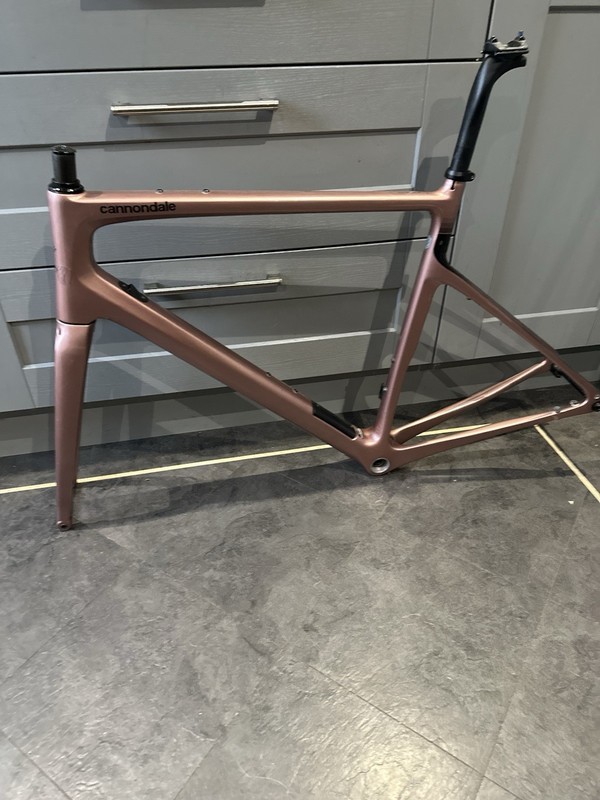

Some endurance frames use mechanical compliance systems. Trek Domane IsoSpeed uses pivot points at the head tube and seat tube to decouple the rider from road vibration. Specialized Roubaix FutureShock puts a spring-damper unit in the head tube for 20mm of suspension travel. Cannondale Synapse uses a SAVE seatpost for rear compliance. Other brands achieve compliance through frame design alone — dropped seatstays, thin seatstays, and D-shaped seatposts that flex vertically. Simple compliance from frame design has fewer potential service points than mechanical systems, which is worth weighing on a used purchase.
How much tyre clearance do endurance frames have?
Wider tyre clearance is a defining feature. Most endurance frames clear 32-35mm tyres; some go to 38mm. Wider tyres at lower pressures transform ride quality on rough UK roads — 28mm at 80psi is the minimum starting point, 32mm at 65psi is the sweet spot. If the frame clears 35mm+, you effectively have a fast gravel frame for light off-road use. Check actual clearance rather than the advertised maximum, as some brands measure optimistically and different tyre manufacturers vary in true width on the same rim.
What should I check buying used?
Endurance frames are generally well treated, since their owners are typically long-distance riders who look after equipment. Check compliance-specific systems: IsoSpeed pivots on Domane frames develop play and need periodic servicing, with replacement bearings available, and FutureShock springs can lose damping, though the cartridges are replaceable. Examine the head tube bearing surfaces, as endurance bikes accumulate high mileage and bearings wear. Standard endurance frames without compliance mechanisms have fewer failure points and are simpler used purchases. If mudguard and rack mounts are present, check the threads — stripped eyelets are common.
