Gravel Frames

Race geometry or adventure geometry?

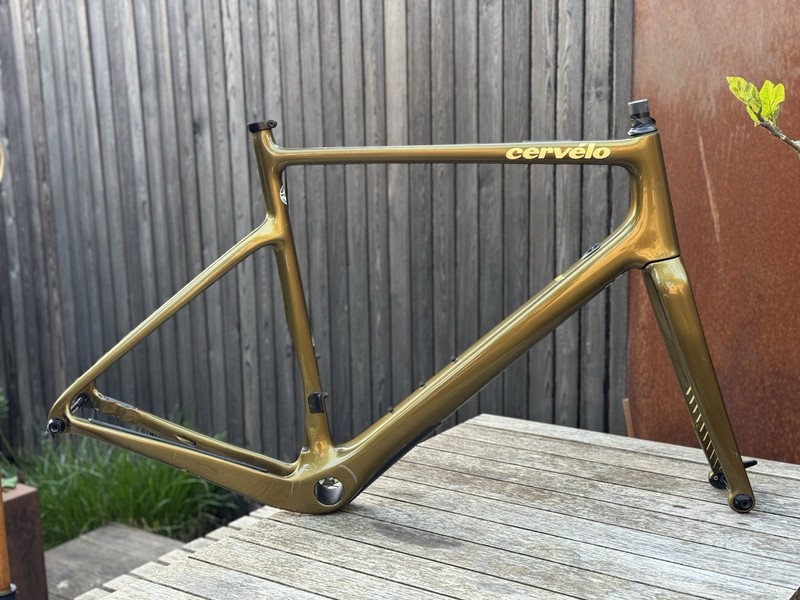

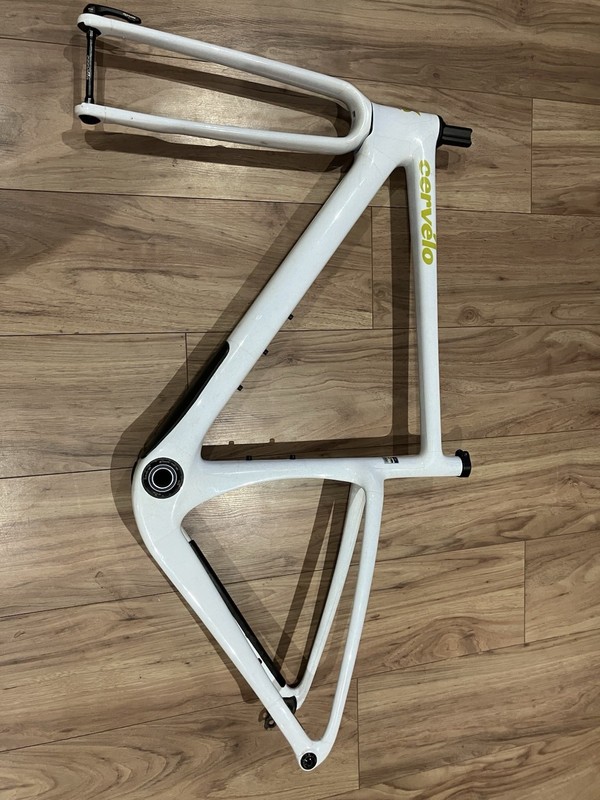

Race-oriented gravel frames (Cervélo Áspero, 3T Exploro, BMC URS) have tighter geometry closer to road frames — shorter wheelbases, steeper head angles, lower bottom brackets. They're fast on smooth gravel and mixed surfaces but twitchy with loaded bags. Adventure frames (Surly Midnight Special, Genesis Vagabond, Bombtrack Beyond) have slacker angles, longer chainstays and more relaxed geometry for loaded stability, much as endurance frames trade sharpness for comfort on tarmac. Most mainstream gravel frames (Diverge, Grail, Checkpoint) sit between the two, so pick based on how you'll actually use it — a race frame with 20kg of bikepacking gear handles poorly.

How much tyre clearance do I need?

Tyre clearance is the single most important spec on a gravel frame. Minimum useful clearance is 40mm on 700c; frames clearing 45-50mm give far more tyre choice and mud clearance in UK conditions. Some frames accept both 700c and 650b wheels — 650b x 47-50mm gives a fatter, more forgiving ride for rough terrain. Check clearance at the chainstays and fork crown, not just the seatstays, as the chainstay is usually the limiting point. Mud clearance matters in British winters: frames that barely clear 40mm in the workshop will rub with mud build-up.

How many mount points should the frame have?

Gravel frames are defined by their mounting options. Three bottle cage bosses is the minimum. Fork cage and cargo mounts let you carry water or dry bags on the fork legs, top-tube bag mounts are increasingly common, and rear rack and mudguard eyelets add touring capability. Some frames include mounts under the down tube for a third bottle or a toolbox. If you plan to bikepack, count the mount points before buying — adding mounts to a carbon frame after the fact is expensive and risky, while steel and titanium frames can have bosses brazed or welded on by a builder.

Which frame material suits gravel?

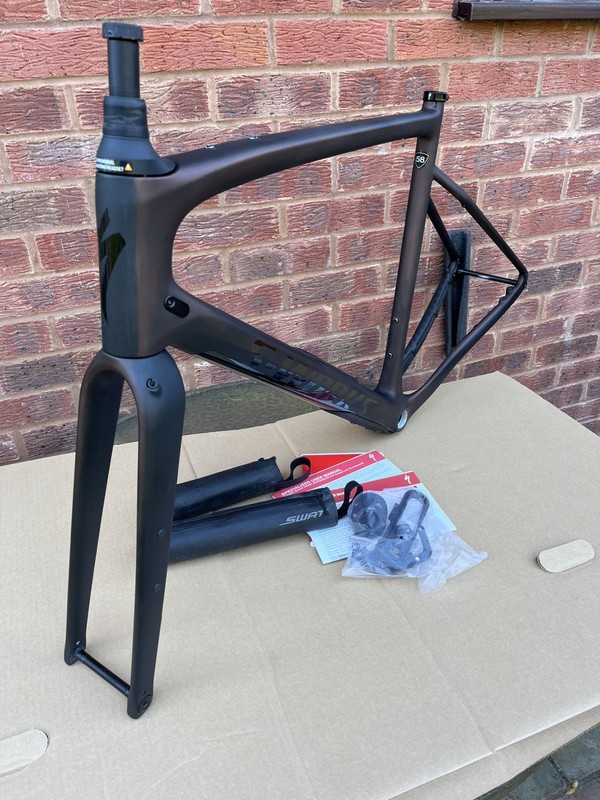

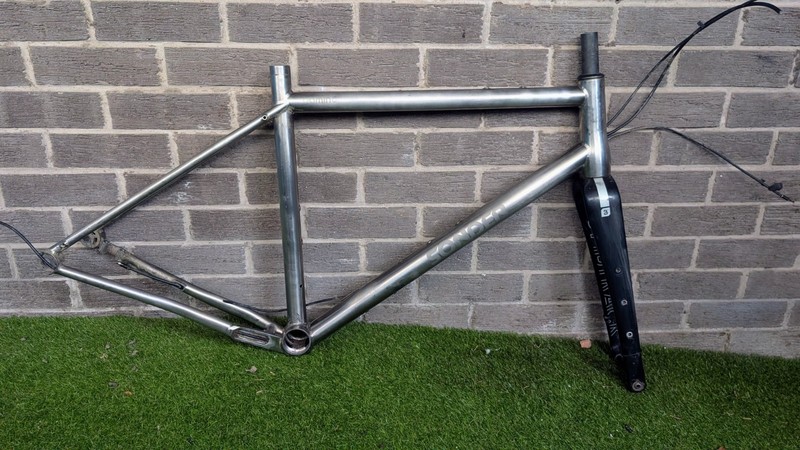

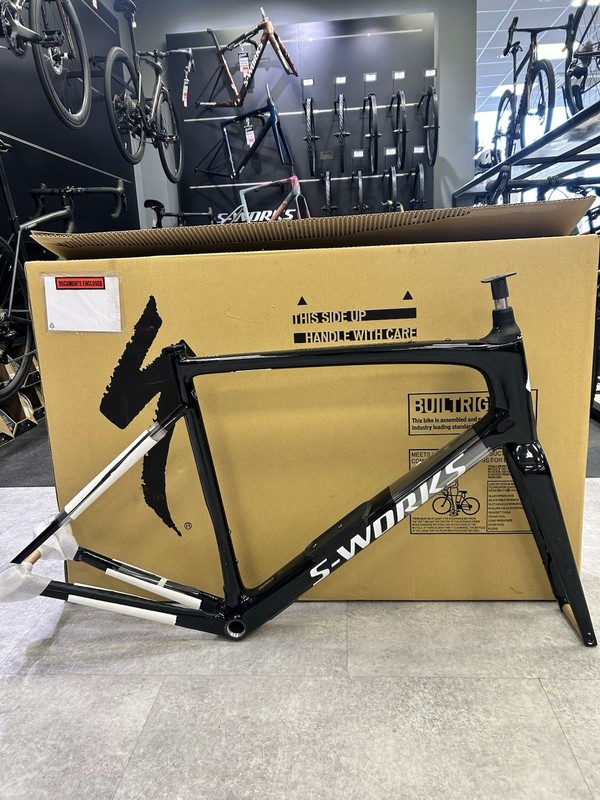

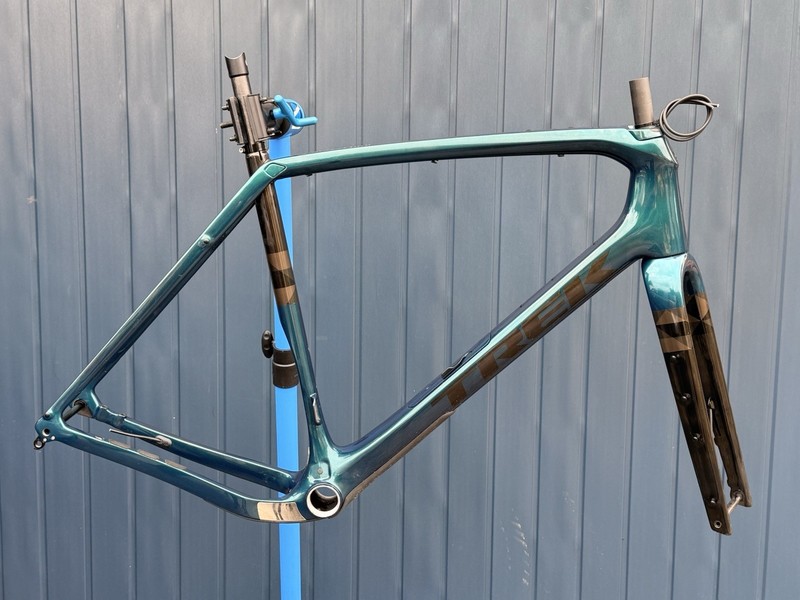

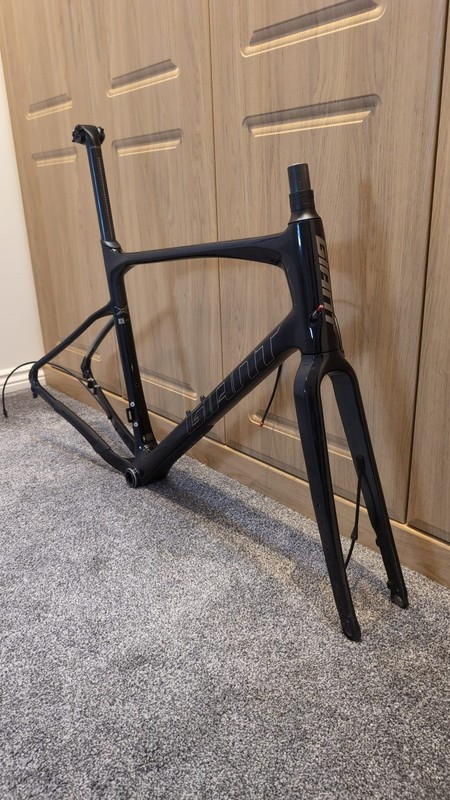

Carbon frames (Canyon Grail, Specialized Diverge, Trek Checkpoint) are lightest and can be shaped for compliance — many use flattened seatstays or leaf-spring seatpost inserts, as on the Diverge and Topstone — which makes them the pick for racing and fast riding. Aluminium (Giant Revolt, Cannondale Topstone alloy) is affordable and tough but transmits more vibration. Steel (Genesis, Surly, Sonder, Bombtrack, Mason Bokeh) is the adventure choice: it absorbs vibration naturally, survives crashes that would crack carbon, and can be repaired anywhere, which is why it endures on vintage frames too. Titanium (Sonder Camino Ti, Enigma Escape, Lynskey GR) is light, compliant, corrosion-proof and lasts decades — the buy-once option if budget allows.

Will a dropper post fit?

Dropper seatposts are increasingly popular on gravel bikes for technical descents. Check the frame's seat tube internal diameter — most gravel frames use 27.2mm seatposts, which limits dropper options compared with MTB 30.9/31.6mm posts. Some newer frames (Cannondale Topstone, Canyon Grail) have internal routing for dropper cables. If you want a dropper, verify compatibility before buying: some frames have internal obstructions or insufficient insertion depth for the dropper's travel range.

What should I check buying used?

Gravel frames see more abuse than pure road frames — stone chips, off-road impacts and loaded riding all take a toll. Check the down tube and chainstays for stone chip damage; on carbon frames, deep chips can expose raw carbon which absorbs moisture. Inspect fork mounts and rack eyelets for cracked paint around the bosses, which indicates stress. Verify thru-axle threads aren't cross-threaded, as rear dropouts on gravel bikes get torqued in muddy conditions. Check the bottom bracket shell for water ingress and corrosion, especially on frames ridden through fords and deep puddles.
